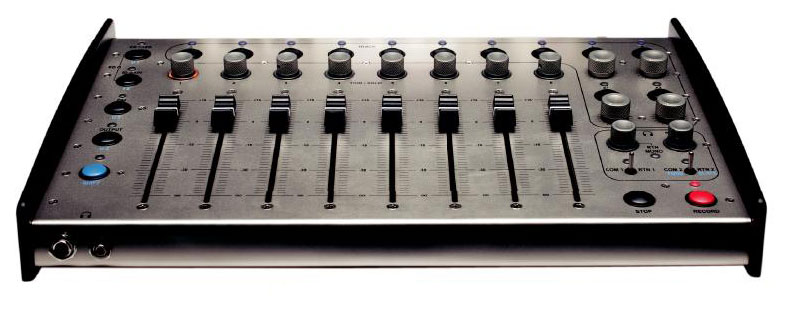

The CL-9 Linear Fader Controller is a dedicated mixing surface for the 788T. With the addition of a CL-9, the already powerful 788T becomes a complete mixer / recording system, perfect for audio capture in sound-for-picture and music-oriented productions.

The heart of the CL-9 is its eight ultra low-latency linear faders and rotary input trim controls. Critical gain changes are fast, smooth, and precise. When a CL-9 is connected the 788T gains a single band parametric EQ for each of its eight inputs. EQ frequency, level, and Q are adjustable. Additionally, the CL-9 adds input pan to the 788T.

A wide range of 788T menu-based controls are accessible with convenient knob control on the CL-9. These controls include output level control of the six outputs, dedicated L / R and Aux 1 / Aux 2 output level controls, track-record enabling for each of the 12 record tracks, and one-touch soloing of inputs or tracks.

Bus-powered by the 788T, the CL-9 is connected by a single USB cable. By connecting the headphone output from the788T to the CL-9 additional monitoring features are available.

The 788T can additionally be connected to a Mac OS or Windows computer running Wave Agent 1.1, Sound Devices popular file librarian. When in the Metering Mode of Wave Agent, all 12 record tracks and 788T time code values can remotely monitored. Record and stop control are also available.

Features

• Eight 100 mm linear faders for precise
• Record and Stop control input level control
• Slate circuit for recording slate mic to
• Rotary trim control for each input with tracks and sending to outputs ring LED metering
• Power and control from the 788T over the
• Sweepable, single-band parametric EQ USB connection per input with variable frequency, gain
• Remote level metering on Mac OS or and filter Q Windows computers using Wave Agent
• Four rotary level controls for Left, Right,
• Output muting Aux1, and Aux2 tracks
• Footswitch input for programmable switch
• Input pan control closure (GPI)
• Quick control of input, track, or output
• Four additional user-progammable solo monitoring controls, useful to assign menu items to
• Output level control for outputs 1–6 physical controls
• Two communication return inputs for
• Stainless-steel chassis with and private talkback circuits machined aluminum end panels

Specifications
Return Inputs 1 and 2:

• two balanced line level inputs on XLR connections
• 40 k ohm input impedance

Headphone Input:

• 1/4-inch unbalanced, tip-left, ring-right, sleeve- ground with level control and headphone source selection for monitoring any input or track
• 10 k ohms impedance

Front Panel Headphone Outputs:

• 3.5-mm and 1/4-inch unbalanced, tip-left, ring- right, sleeve-ground with level control and head- phone source selection for monitoring any input or track

Headphone Pass-Through (back panel):

• unbalanced, tip-left, ring-right, sleeve-ground 1/4- inch connector
• 100 ohm impedance

Frequency Response:

• any input to any output: 20 Hz to 20 kHz ± 1 dB @ 1 kHz

Display/Metering/Control:

• sunlight-viewable LED level metering with bright- ness control, 8 tracks
• PPM, VU or combination PPM/VU level metering
• front panel, multi-color backlit LCD viewable in all lighting conditions
• LED, signal present, peak, and limiting indication per channel

Footswitch Input:

• +3.3V at 1k ohm, tip to sleeve; +3.3 V at 1k ohm, ring to sleeve, both active low

Powering:

• USB bus powered from the 788T
• 200 mA at 5 V typical

Mechanical Construction:

• 2.75” x 13.75” x 8.75” (H x W x D)
• 7 cm x 34.5 cm x 22.5 cm (H x W x D)
• 4 lbs 11 oz, 2.1 kg
• aluminum & stainless steel chassis for exceptional durability and low weight
• tested for the same environmental extremes as Sound Devices field mixers
