Exceptional sound and rugged reliability
When the pros need an EQ, they turn to dbx. With a proven track record that spans four decades, dbx® EQs are the industry standard for touring, studios, and audio installations. With the dbx heritage of revered pro EQs, the 231s meets the needs of the most demanding sound reinforcement environments, while offering the simplicity of straightforward controls.

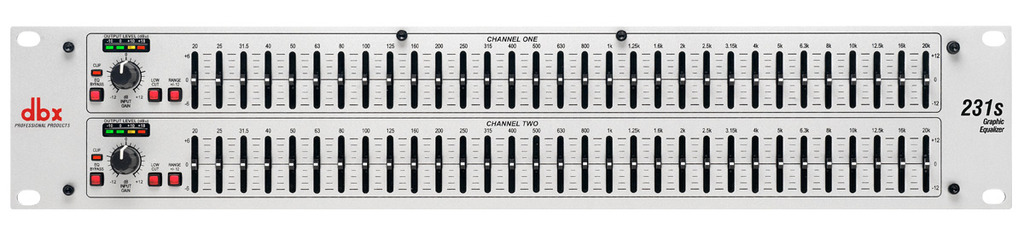

The dbx 231s includes two 31-band channels of 1/3-octave equalization, ±12 dB input gain, switchable ±6 dB or ±12 dB boost/cut range, 20mm nonconductive sliders, an intuitive user interface, and output level metering. From its extended 10Hz to 50kHz frequency response and 112 dB dynamic range to the quality componentry and meticulous attention to detail, the 231s offers exceptional sound and rugged reliability that guarantees you will always sound your best.

Sure to find a home in the studio, on tour and with installed sound venues, the dbx 231s is destined to take its rightful place in the lineage of great dbx signal processors that are the professional's choice in signal processing. With such affordable quality, there's no longer any excuse for compromising your sound.

Recommended for: Portable, Tour.

Features
Dual 31-band, 1/3-octave Constant Q frequency bands
Switchable boost/cut ranges of ±6 or ±12 dB
Front panel bypass switch
±12 dB input gain range
4-segment LED ladders for monitoring output levels
XLR and TRS Inpts and Outputs
Frequency Response of 50kHz
Dynamic range of greater than 108dB


_____

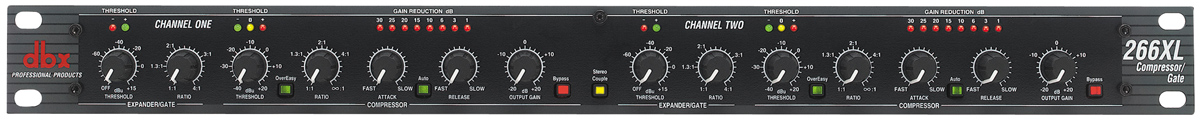

Most compressor/gates provide less than musical compression, coupled with gating that swallows transients—or closes early, cutting off decay and reverb tails. The superb engineering in the 266XL ensures that both its compression and gating provide versatility and excellent sonic performance in situations where other compressor/gates typically produce undesirable processing artifacts.

When using the 266XL’s AutoDynamic™ Attack and Release controls, artists and engineers will find that the center settings deliver classic dbx compression, while the full control range produces voicings that extend from slow “leveling” to aggressive “peak” limiting.

The Auto Dynamic™ circuitry continuously adjusts the actual attack and release times to optimally match the program material. Since users aren’t restricted to using the Attack and Release controls only in “peak” operation, they can tailor the response of the 266XL for individual tracks, mixed program material, special effects or system protection. As a result, production studios can use the versatile 266XL to replace multiple “single-purpose” limiters while sound reinforcement users can standardize on the 266XL for all of their applications.

The 266XL’s advanced gate circuitry uses a completely new, program-dependent timing algorithm to produce ultra-smooth release characteristics—even with complex signals, such as voice or reverb decays. dbx engineers went on to take advantage of the wide dynamic range and high precision of the dbx® VCA to design in an extra-wide threshold range and ensure top gating performance for each application.

Separate precision LED displays for gain reduction, compression threshold and gate threshold allow quick, accurate setup, while the 266XL’s intuitive operation lets users easily smooth uneven levels, add sustain to guitars, squash drums or tighten up mixes. In Stereo couple mode, the Channel 1 controls become Master controls, and Channel 2 follows precisely to ensure a rock solid stereo image—even with high amounts of compression. Professionals and newcomers will find that the 266XL sets up rapidly and musically the first time it is used, and every time thereafter.

The dbx® 266XL processor is the result of an intensive engineering and product development effort aimed at taking advantage of the latest and best advances in manufacturing technology to deliver true dbx audio performance and reliability to our customers at the lowest possible cost. The 266XL puts a completely new level of compressor/gate performance within everyone’s reach.

Recommended for: Portable, Tour, Studio.

Features
Goof proof operation to smooth uneven levels, add sustain to guitars, fatten drums or tighten up mixes
New gate timing algorithms ensure the smoothest release characteristics
Program-adaptive expander/gates
Great sounding dynamics control for any type of program material
Separate precision LED displays for gain reduction, compression threshold and gate threshold allow quick, accurate setup
Stereo or dual-mode operation
Balanced inputs and outputs on 1/4" TRS and XLR
Side Chain insert
Classic dbx® "Auto" mode
